Horizontal Hydraulic Cylinder
Stroke can be customized
OEM
High quality
Product Specification
| Stroke range: | 100-300mm | Release stroke: | 6°-10° |
| Max work load: | 600kg | Free stroke: | 2°-5° |
| Max bearing load: | 700kg | Pump stroke: | 31°-35° |
| Min relief load: | 20kg | Install angle: | 360° |
| Each stroke of pressure: | 6mm | The Pressure relief velocity is less than 15mm/s | |
| Safety protection value: | Yes | Service life is greater than 50,000 times | |
Drawing

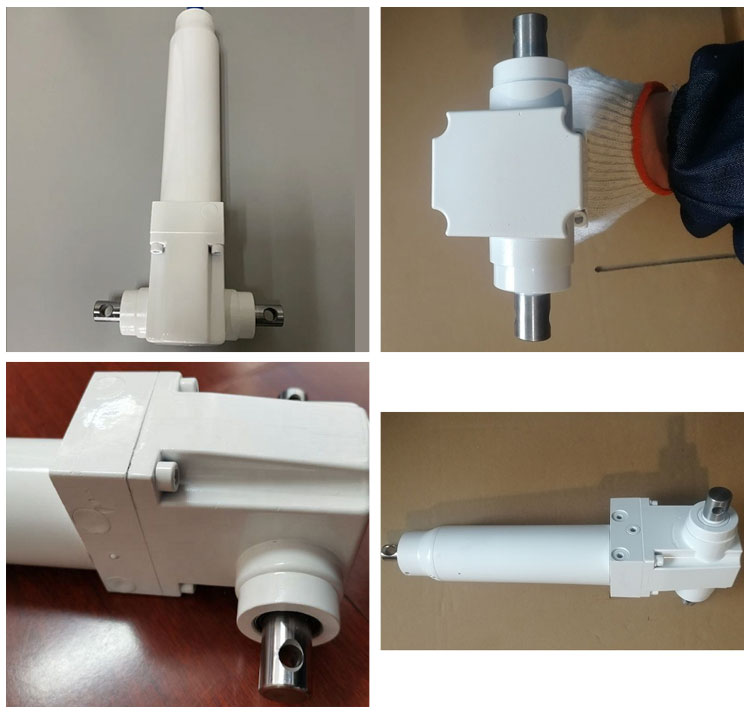

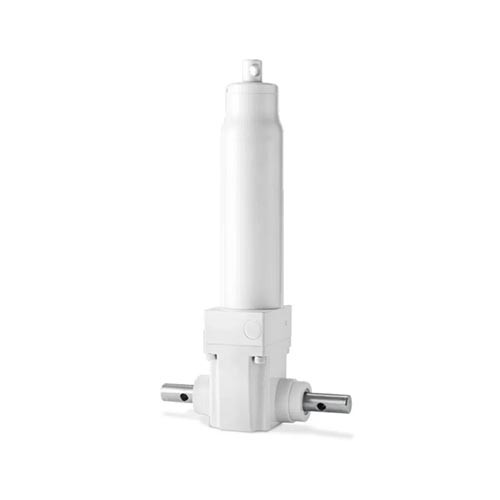

Product Image
Product Usage
