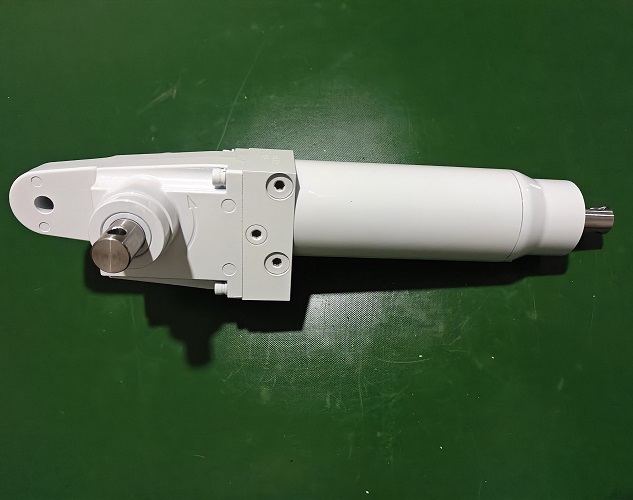

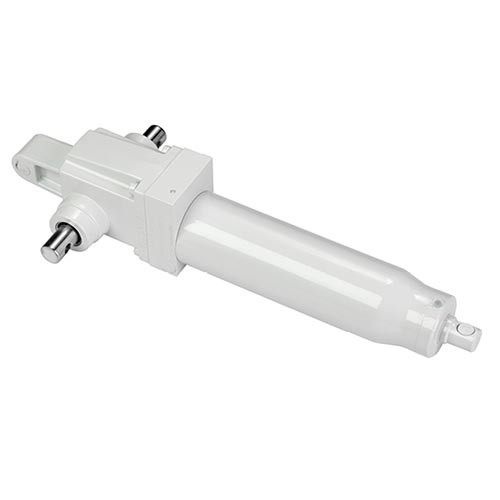

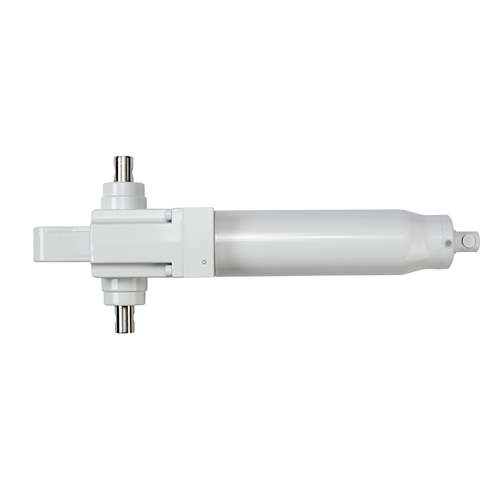

Horizontal Hydraulic Cylinder with Ear

Stroke can be customized
OEM
High quality

Product Specification

Stroke range:	100-300mm	Release stroke:	6°-10°
Max work load:	600kg	Free stroke:	2°-5°
Max bearing load:	700kg	Pump stroke:	31°-35°
Min relief load:	20kg	Install angle:	360°
Each stroke of pressure:	6mm	The pressure relief velocity is less than 15mm/s
Safety protection value:	Yes	Service life is greater than 50,000times
